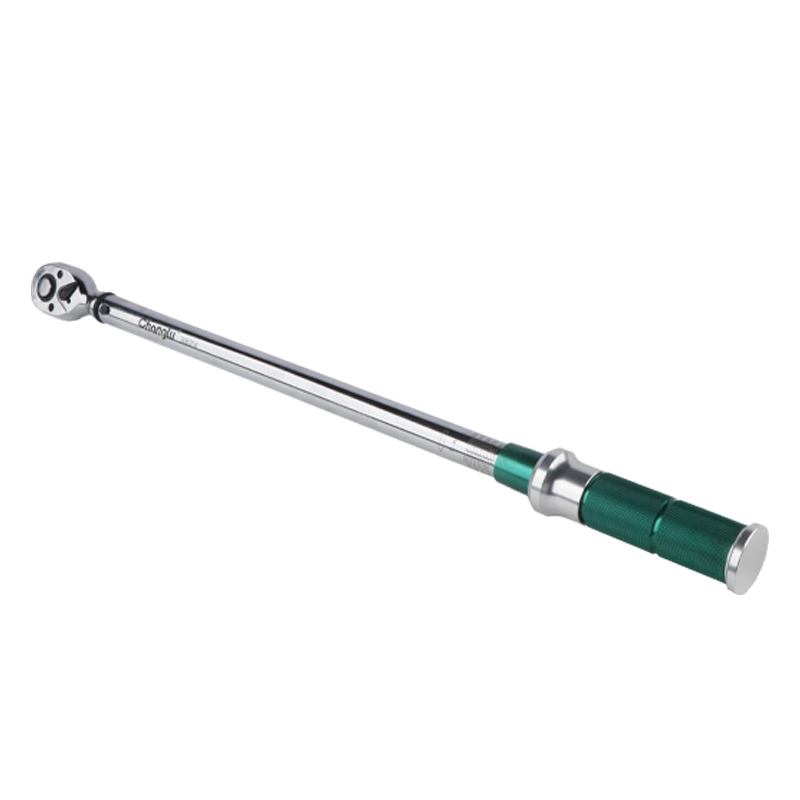

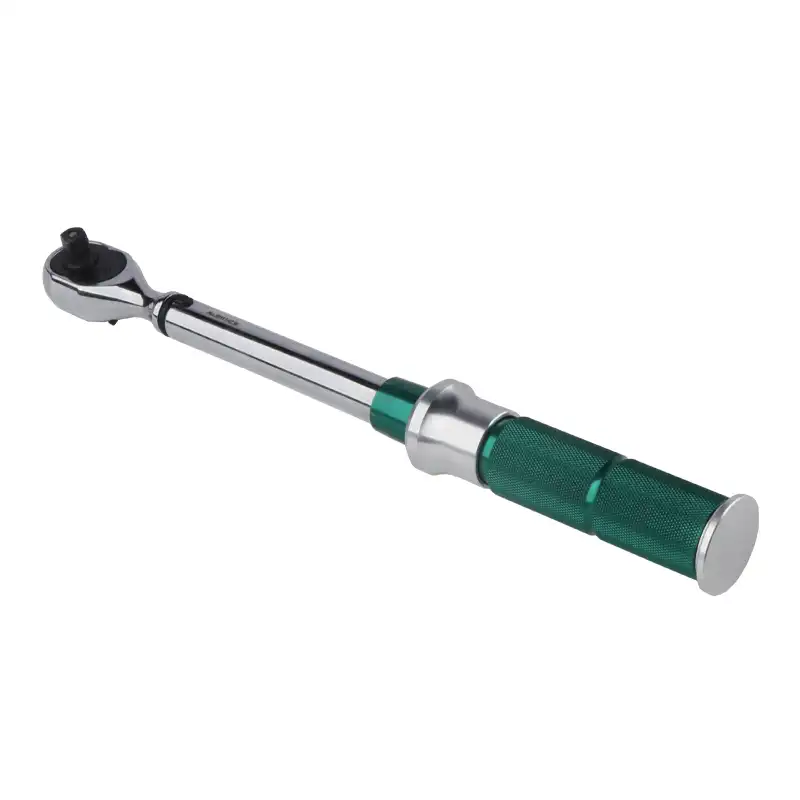

How does an adjustable aluminum torque wrench work?

An adjustable aluminum torque wrench represents a crucial precision tool in modern mechanical applications, combining lightweight construction with exceptional accuracy for fastening operations. This specialized instrument operates through a sophisticated internal mechanism that allows users to preset specific torque values and receive clear feedback when the desired tension is achieved. The aluminum construction provides an optimal balance between durability and weight reduction, making it particularly valuable for extended use in automotive, aerospace, and industrial settings. Understanding the operational principles of an adjustable aluminum torque wrench is essential for professionals who require consistent, reliable fastening results across various applications, from delicate electronic assemblies to heavy-duty construction projects.

What makes an adjustable aluminum torque wrench different from other torque wrenches?

Lightweight Construction Benefits

The primary distinction of an adjustable aluminum torque wrench lies in its material composition, which significantly reduces operator fatigue during extended use. Traditional steel torque wrenches can weigh considerably more, making them cumbersome for overhead work or prolonged operation periods. The aluminum construction maintains structural integrity while providing enhanced maneuverability, particularly crucial in automotive assembly lines where workers handle multiple fastening operations throughout their shifts. This weight reduction doesn't compromise the tool's precision or durability, as modern aluminum alloys offer excellent strength-to-weight ratios. The reduced mass also contributes to improved control and accuracy, allowing operators to feel the torque application more precisely without the interference of excessive tool weight.

Corrosion Resistance Properties

An adjustable aluminum torque wrench offers superior corrosion resistance compared to traditional steel variants, making it ideal for harsh working environments. The natural oxide layer that forms on aluminum surfaces provides inherent protection against moisture, chemicals, and environmental contaminants commonly encountered in industrial settings. This corrosion resistance translates to longer tool life and maintained accuracy over extended periods, reducing replacement costs and ensuring consistent performance. The non-magnetic properties of aluminum also make these wrenches suitable for applications where magnetic interference could affect sensitive equipment or electronic components. In marine environments, chemical processing plants, or outdoor construction sites, the corrosion resistance of an adjustable aluminum torque wrench becomes particularly valuable.

Precision Adjustment Mechanisms

The adjustment mechanism in an adjustable aluminum torque wrench typically features fine-threaded components that allow for precise torque value setting across a wide range. The aluminum housing accommodates sophisticated internal mechanisms including calibrated springs, clutch assemblies, and measurement scales that work together to provide accurate torque application. The smooth operation of these adjustment systems ensures that operators can quickly and reliably set desired torque values without the binding or sticking sometimes associated with heavier steel constructions. The lightweight nature of aluminum allows for more intricate internal designs, often incorporating advanced features like dual-direction operation and multiple torque ranges within a single tool.

How do you properly calibrate an adjustable aluminum torque wrench?

Initial Setup and Verification

Proper calibration of an adjustable aluminum torque wrench begins with establishing a controlled testing environment and gathering certified reference standards. The calibration process requires specialized equipment capable of measuring precise torque values, typically involving a torque calibration machine or certified torque tester. Before beginning calibration, the adjustable aluminum torque wrench should be cleaned and inspected for any damage or wear that could affect its performance. The tool must be allowed to reach room temperature if it has been stored in different environmental conditions. Initial verification involves checking the wrench at multiple points across its operating range, typically at 20%, 50%, and 80% of maximum capacity, to ensure consistent accuracy throughout the torque spectrum.

Adjustment Procedures and Standards

The calibration adjustment process for an adjustable aluminum torque wrench involves fine-tuning the internal mechanism to match certified reference values. This typically requires accessing internal calibration screws or adjustment mechanisms, which should only be performed by qualified technicians using proper procedures. The adjustment process follows established industry standards such as ISO 6789 or ASME B107.14, which specify acceptable tolerances and testing procedures. Each adjustment point must be verified multiple times to ensure repeatability and consistency. The lightweight aluminum construction requires careful handling during calibration to prevent damage to sensitive internal components while maintaining the precision necessary for accurate torque measurement.

Documentation and Certification

Proper documentation of the calibration process for an adjustable aluminum torque wrench is essential for maintaining traceability and ensuring compliance with quality standards. Calibration certificates should include specific information about the testing equipment used, environmental conditions during calibration, and the actual measured values at each test point. The documentation must clearly indicate the calibration date, next due date, and acceptable tolerance ranges for the specific model. Many industries require periodic recalibration of torque wrenches, typically annually or after a specified number of uses. The aluminum construction may require slightly different calibration intervals compared to steel tools due to material properties and thermal expansion characteristics.

What are the best practices for maintaining an adjustable aluminum torque wrench?

Regular Cleaning and Storage

Maintaining an adjustable aluminum torque wrench requires consistent cleaning practices to prevent contamination and ensure accurate operation. After each use, the tool should be wiped clean with a lint-free cloth to remove dirt, oil, and debris that could interfere with the adjustment mechanism or affect readings. The aluminum surface should be cleaned with appropriate solvents that won't damage the material or internal components. Proper storage is crucial for maintaining accuracy, requiring the wrench to be stored in a protective case at the lowest torque setting to relieve spring tension. The storage environment should be clean, dry, and temperature-controlled to prevent thermal expansion issues that could affect calibration. Regular inspection of the storage case and cleaning of storage areas helps prevent contamination that could transfer to the tool.

Lubrication and Component Care

The internal mechanisms of an adjustable aluminum torque wrench require periodic lubrication to maintain smooth operation and prevent wear. The lubrication schedule depends on usage frequency and operating conditions, but generally involves applying specified lubricants to pivot points, adjustment threads, and moving components. The type of lubricant used is critical, as incompatible products can damage seals or affect the accuracy of the torque measurement system. The aluminum construction may require specific lubricants that don't react with the material or cause corrosion. Regular inspection of seals, O-rings, and other wear components helps identify potential issues before they affect tool performance. The lightweight nature of aluminum components makes them more susceptible to damage from improper handling or excessive force during maintenance.

Usage Guidelines and Handling

Proper usage of an adjustable aluminum torque wrench involves understanding its limitations and following manufacturer recommendations for maximum tool life. The tool should never be used as a breaker bar or for loosening fasteners, as this can damage the precision mechanism and affect calibration. When using the wrench, operators should apply force smoothly and steadily, allowing the mechanism to function properly and provide accurate readings. The aluminum construction requires careful handling to prevent dents or damage that could affect the tool's accuracy. Operators should avoid dropping the tool or subjecting it to impact loads beyond its design specifications. Regular training on proper usage techniques helps ensure that the adjustable aluminum torque wrench maintains its precision and reliability throughout its service life.

Conclusion

An adjustable aluminum torque wrench operates through sophisticated internal mechanisms that combine lightweight construction with precision torque measurement capabilities. The aluminum material provides superior corrosion resistance, reduced operator fatigue, and enhanced maneuverability while maintaining the accuracy required for professional applications. Proper calibration, maintenance, and usage practices are essential for ensuring consistent performance and longevity of these precision instruments.
